OpenStack Salt - cheatsheet

In this article we assume that you are familiar with Salt, formulas, reclass and OpenStack-Salt. This is my cheatsheet which drives you step by step to deploy OpenStack Mitaka based on the latest model, using a new Cluster Class. If you feel lost, feel free to get back to the beginning.

What’s new

The mk-lab-salt model, built for training and development, introduce the following new features

  • Salt Master now runs on Ubuntu 16.04 LTS
  • OpenStack packages comes from Mirantis repositories
  • New top level cluster class allows a simple modeling of multiple deployments in a single reclass model.
  • Mirantis Stacklight, logging, monitoring and alerting tooling is now integrated

Modeling your Infrastructure

In this session, I’ll be using my forked repository of Mirantis mk-lab-salt-model infrastructure modeling.

Fork and Clone upstream Mirantis model

Fork the Mirantis repository, Log into your GitHub account, accessing the Mirantis repository and click on fork.

Once its done, you can clone your fork

# git clone git@github.com:planetrobbie/mk-lab-salt-model.git /srv/salt/reclass -b master
Enter passphrase for key '/root/.ssh/id_rsa':
remote: Counting objects: 1528, done.
remote: Total 1528 (delta 0), reused 0 (delta 0), pack-reused 1528
Receiving objects: 100% (1528/1528), 162.76 KiB | 210.00 KiB/s, done.
Resolving deltas: 100% (704/704), done.
Checking connectivity... done.

Note: avoid HTTPS while cloning, prefer SSH, it will enable you to push your updates just using your SSH key instead of typing your password at each push to origin !

Tweak your model to your need

First of all, each of your minion should have an ID which correspond to nodes described in the reclass model. Currently the nodes should have the following ID:

  • ctl01.mk22-lab-advanced.local
  • ctl02.mk22-lab-advanced.local
  • ctl03.mk22-lab-advanced.local
  • cmp01.mk22-lab-advanced.local
  • mon01.mk22-lab-advanced.local
  • prx01.mk22-lab-advanced.local

We’ve introduced the concept of cluster class to give you an easy way to describe multiple deployment in the same model.

Each deployment is now defined in its own cluster directory classes/cluster/<deployment_name>. Our current model offers the following ones:

  • mk20_lab_basic
  • mk20_lab_advanced
  • mk20_lab_expert
  • mk20_stacklight_basic
  • mk20_stacklight_advanced
  • mk22_lab_basic
  • mk22_lab_advanced
  • mk22_scale_mirantis
  • mk22_full_scale

Let’s review the mk22_lab_advanced cluster class, which describe the following nodes

  • 1 config node - Salt Master Node
  • 3 control nodes - OpenStack/OpenContrail control plane
  • 1 compute node - KVM node
  • 3 monitor node - StackLight backend.
  • 1 Proxy Node - frontend to web UI

the Cluster classe structure of our mk22_lab_advanced looks like this

├── fuel
|   ├── config.yml
│   └── init.yml
├── init.yml
├── openstack
│   ├── compute.yml
│   ├── control.yml
│   ├── dashboard.yml
│   ├── init.yml
│   └── proxy.yml
└── stacklight
    ├── client.yml
    ├── init.yml
    ├── proxy.yml
    └── server.yml
path details
fuel/config.yml Salt Master parameters: git repository, git branch, IPs, interfaces, Galera nodes declaration
fuel/init.yml Declaration of cfg01 host
init.yml cluster domain, compute node declaration, IPs
openstack/init.yml OpenStack and OpenContrail version, passwords, Controllers IPs, VIP, nodes declaration
openstack/compute.yml compute nodes params: OpenContrail GW, Data plane interface (vhost0)
openstack/control.yml Keepalived interface
openstack/dashboard.yml repository
openstack/proxy.yml declaration for nginx ssl endpoint to proxy access to API and UI
stacklight/init.yml passwords, monitoring node declaration
stacklight/client.yml classes for collectd, heka, sensu nodes
stacklight/proxy.yml declaration for nginx ssl endpoint to proxy access to Kibana and Grafana
stacklight/server.yml Kibana host

Apart from the cluster class you can look at the following files

path details
classes/system/openssh/server/single.yml declare additional users with their SSH keys
nodes/control/cfg01.mk22-lab-advanced.local.yml model repository branch and can overload Timezone

Tweak all the necessary bold parameters, depending on your infrastructure requirements above.

Check if it looks good

Following up your model adaptation above, check that everything looks good

# reclass-salt --top

Verify that your minions are responding and are running the same version as your Salt Master

# salt '*' test.version

Note: As of today, december 2017, it should be 2016.3.3 (Boron).

If versions aren’t in sync, refer to the official installation guide or just reinstall salt-minion from the official SaltStack repository on the target nodes as follow:

# echo "deb http://repo.saltstack.com/apt/ubuntu/14.04/amd64/2016.3 trusty main" > /etc/apt/sources.list.d/saltstack.list
# wget -O - https://repo.saltstack.com/apt/ubuntu/14.04/amd64/2016.3/SALTSTACK-GPG-KEY.pub | apt-key add -
# apt-get clean
# apt-get update
# apt-get install -y salt-minion

Commit your changes

Before you can apply the model to any nodes, you need to commit the changes to your repository

# cd /srv/salt/reclass
# git add -A .
# git commit -m "model updated to lab requirements"
# git push origin

Run the reclass.storage state to generate all the nodes within /srv/salt/reclass/nodes/_generated

salt 'cfg01*' state.sls salt.master,reclass

Refresh minion’s pillar data

# salt '*' saltutil.refresh_pillar
ctl03.mk22-lab-advanced.local:
    True
ctl01.mk22-lab-advanced.local:
    True
ctl02.mk22-lab-advanced.local:
    True
cfg01.mk22-lab-advanced.local:
    True

Sync all Salt resources

# salt '*' saltutil.sync_all

Salt Master

To install your Salt Master, follow the instructions given in our our previous article, the only changed step is the one above where I use another model instead of the workshop-salt-model, I’m copying for reference the command below

git clone git@github.com:planetrobbie/mk-lab-salt-model.git /srv/salt/reclass -b master

Formulas

In this development lab, we will be cloning formulas from their respective source repo using a script that you can find in my repository.

Salt Master provisioning cheatsheet

To provision your Salt Master run

salt "cfg01*" state.sls salt.master
salt "cfg01*" state.sls linux,openssh,salt.minion,ntp

Everything should be green, re-run it if that’s not the case.

Deploy Common environment and Support Services

Controllers > linux | openssh | salt.minion | ntp

Let’s run the first batch of states

salt "ctl*" state.sls linux,openssh,salt.minion,ntp

Controllers > keepalived

Provision keepalived, a daemon for cluster VIP based on VRRP, here we are using a Compound matcher](https://docs.saltstack.com/en/latest/topics/targeting/compound.html) which glob on Pillar Data and will then be applied on all corresponding node.

# salt -C 'I@keepalived:cluster' state.sls keepalived -b 1

-b 1 define a batch size of 1, instead of executing on all targeted minions at once, execute on a progressive set of minions.

Check Keepalived
# salt -C 'I@keepalived:cluster' cmd.run "ip a | grep '\/32'"

ctl03.mk22-lab-advanced.local:
        inet 172.16.10.254/32 scope global eth0

As you can see above, our 172.16.10.254 VIP is now present on ctl03.

Controllers > Gluster

Setup Gluster Service

# salt -C 'I@glusterfs:server' state.sls glusterfs.server.service

Now Prepare the Glusterfs volumes

# salt -C 'I@glusterfs:server' state.sls glusterfs.server.setup -b 1
Check Gluster
# salt -C 'I@glusterfs:server' cmd.run "gluster peer status; gluster volume status" -b 1

If anything goes wrong, start over by deleting the affected volumes, re-create it manually and start it.

ctl01# gluster delete volume glance
ctl01# gluster volume create keystone-keys replica 3 172.16.10.101:/srv/glusterfs/keystone-keys 172.16.10.102:/srv/glusterfs/keystone-keys 172.16.10.103:/srv/glusterfs/keystone-keys force
ctl01# gluster volume start glance force
# salt-call state.sls glusterfs.server.setup

Controllers > RabbitMQ

Let’s now install and configure RabbitMQ on our cluster

# salt -C 'I@rabbitmq:server' state.sls rabbitmq
Check RabbitMQ
# salt -C 'I@rabbitmq:server' cmd.run "rabbitmqctl cluster_status"

Controllers > MySQL Galera

Let’s now deploy our database cluster, starting by the master

# salt -C 'I@galera:master' state.sls galera

Once the previous command terminate, deploy the remaining Galera nodes

# salt -C 'I@galera:slave' state.sls galera

Galera state also creates the database tables and users for OpenStack services.

Note: After the first failed run on the slaves, I had to apply the following patches on the Galera formula

--- a/galera/files/init_bootstrap.sh
+++ b/galera/files/init_bootstrap.sh
@@ -6,7 +6,7 @@ counter=60

 while [ $counter -gt 0 ]
 do
-  mysql -u root -e"quit"
+  mysql -u root -e"quit" -pworkshop
   if [[ $? -eq 0 ]]; then
     exit 0
   fi
diff --git a/galera/slave.sls b/galera/slave.sls
index 5a58186..d813370 100644
--- a/galera/slave.sls
+++ b/galera/slave.sls
@@ -91,7 +91,8 @@ galera_init_start_service:

 galera_bootstrap_set_root_password:
   cmd.run:
-  - name: mysqladmin password "{{ slave.admin.password }}"
+  - name: echo "patched - can't set root password two times"
+#  - name: mysqladmin password "{{ slave.admin.password }}"
   - require:
     - cmd: galera_init_start_service
Check Galera
# salt -C 'I@galera:master' mysql.status | grep -A1 wsrep_cluster_size
# salt -C 'I@galera:slave' mysql.status | grep -A1 wsrep_cluster_size

Controllers > HAProxy

# salt -C 'I@haproxy:proxy' state.sls haproxy
Check HAProxy
# salt -C 'I@haproxy:proxy' service.status haproxy

Now restart rsyslog

# salt -I 'haproxy:proxy' service.restart rsyslog

Controllers > memcached

# salt -C 'I@memcached:server' state.sls memcached

OpenStack Control Services

Controllers > Keystone | Glance

Provision Keystone

# salt -C 'I@keystone:server' state.sls keystone.server -b 1

Populate keystone services/tenants/admins

# salt -C 'I@keystone:client' state.sls keystone.client
Check Keystone
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; keystone service-list"

Continue on with Glance State

# salt -C 'I@glance:server' state.sls glance -b 1

Run the Glusterfs client state

# salt -C 'I@glance:server' state.sls glusterfs.client

Re-run Keystone state to re-create the fernet tokens within the Gluster mounted filesystem

# salt -C 'I@keystone:server' state.sls keystone.server
Check Glance
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; glance image-list"

Controllers > Nova

Install Nova, in this deployment we will use the LVM backend for Cinder

# salt -C 'I@nova:controller' state.sls nova -b 1
Check Nova
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; nova service-list"

Controllers > Cinder

# salt -C 'I@cinder:controller' state.sls cinder -b 1
Check Cinder
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; cinder list"

Controllers > Neutron

# salt -C 'I@neutron:server' state.sls neutron -b 1
Check Neutron
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; neutron agent-list"

Getting errors here is totally normal, OpenContrail is not yet there !

Controller > Heat

# salt -C 'I@heat:server' state.sls heat -b 1
Check Heat
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; heat resource-type-list"

Horizon | Nginx

For Horizon deployment you need to bring your prx01 proxy node to the baseline

salt "prx01*" state.sls linux,openssh,salt.minion,ntp

You can then deploy Horizon and Ninx

# salt -C 'I@horizon:server' state.sls horizon

Note: This model use a custom theme stored on prx01 at /usr/share/openstack-dashboard-mirantis-theme/static/mirantis

In this lab we aill be using our Salt Master as our reverse proxy to access our Web UI, so deploy Nginx on it.

# salt -C 'I@nginx:server' state.sls nginx
Check Horizon

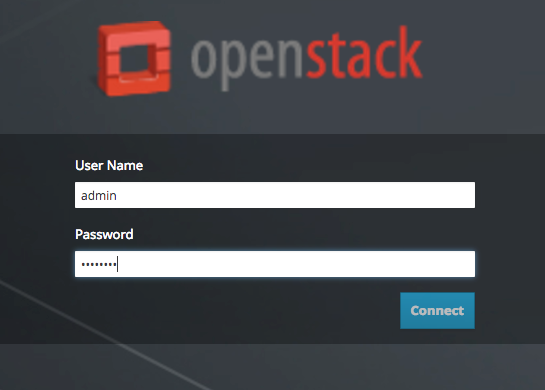

Horizon should be available on http://172.16.10.121:8078, default login/password is admin/workshop, but before you can really use it you have to terminate the deployment.

OpenContrail

Install opencontrail database services

# salt -C 'I@opencontrail:database' state.sls opencontrail.database -b 1

Install opencontrail control services

# salt -C 'I@opencontrail:control' state.sls opencontrail -b 1

Contrail Post installation

Provision opencontrail control services

# salt -C 'I@opencontrail:control:id:1' cmd.run "/usr/share/contrail-utils/provision_control.py --api_server_ip 172.16.10.254 --api_server_port 8082 --host_name ctl01 --host_ip 172.16.10.101 --router_asn 64512 --admin_password workshop --admin_user admin --admin_tenant_name admin --oper add"

# salt -C 'I@opencontrail:control:id:1' cmd.run "/usr/share/contrail-utils/provision_control.py --api_server_ip 172.16.10.254 --api_server_port 8082 --host_name ctl02 --host_ip 172.16.10.102 --router_asn 64512 --admin_password workshop --admin_user admin --admin_tenant_name admin --oper add"

# salt -C 'I@opencontrail:control:id:1' cmd.run "/usr/share/contrail-utils/provision_control.py --api_server_ip 172.16.10.254 --api_server_port 8082 --host_name ctl03 --host_ip 172.16.10.103 --router_asn 64512 --admin_password workshop --admin_user admin --admin_tenant_name admin --oper add"

Check Contrail

# salt -C 'I@opencontrail:control' cmd.run "contrail-status"
# salt -C 'I@keystone:server' cmd.run ". /root/keystonerc; neutron net-list; nova net-list"

Access OpenContrail Web UI at https://172.16.10.254:8143/ using admin/workshop login/password.

You should be able to create networks, subnets, routers, consult OpenStack documentation for the corresponding workflow.

StackLight

StackLight is Mirantis solution to monitor your private cloud. Let’s bring your monitoring nodes to the baseline. This model deploy StackLight on three Ubuntu 16.04 nodes in High Availability mode.

# salt "mon*" state.sls linux,openssh,salt.minion,ntp

Now to deploy the monitoring backends, StackLight on this node, run the following states:

# salt -C 'I@elasticsearch:server' state.sls elasticsearch.server -b 1
# salt -C 'I@influxdb:server' state.sls influxdb -b 1

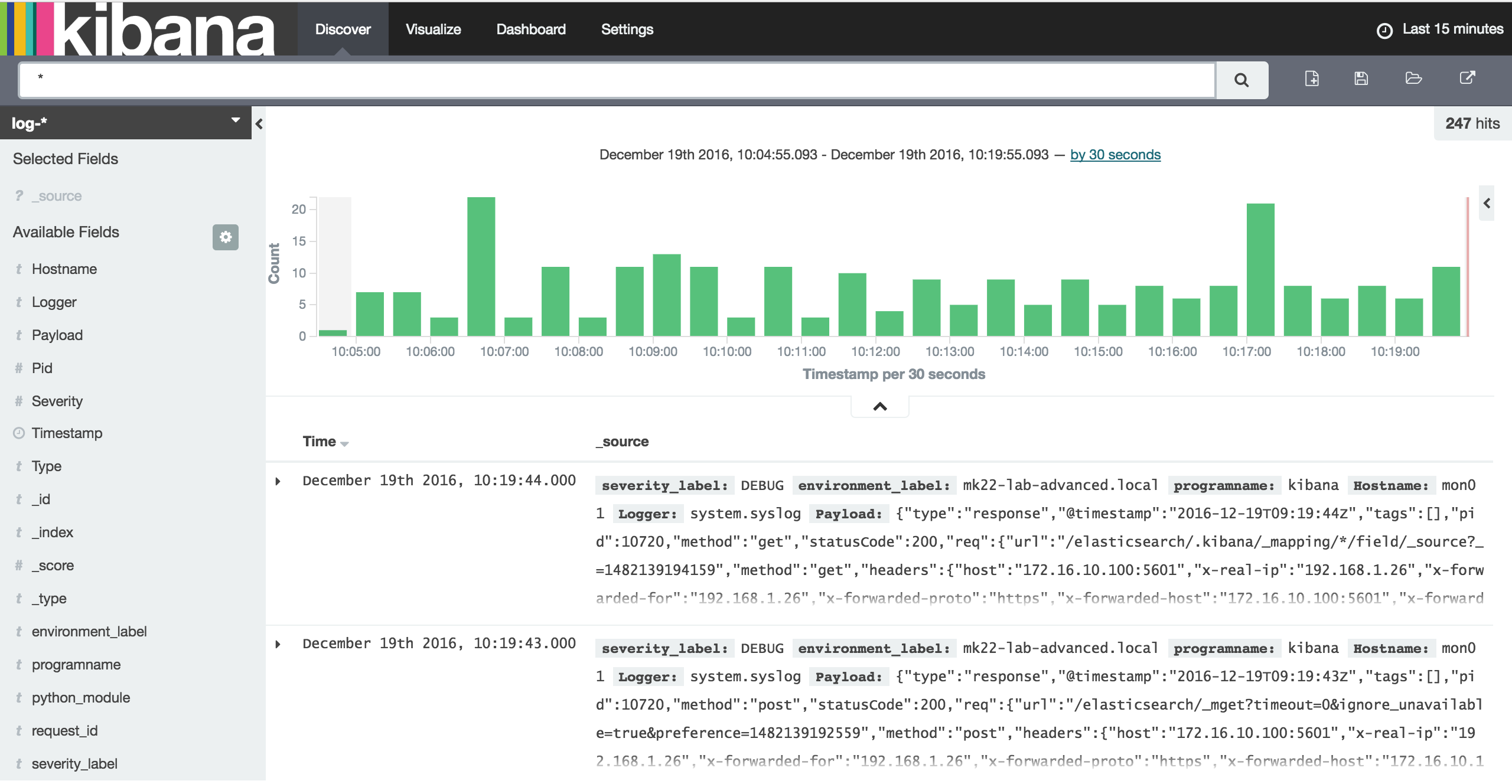

# salt -C 'I@kibana:server' state.sls kibana.server -b 1

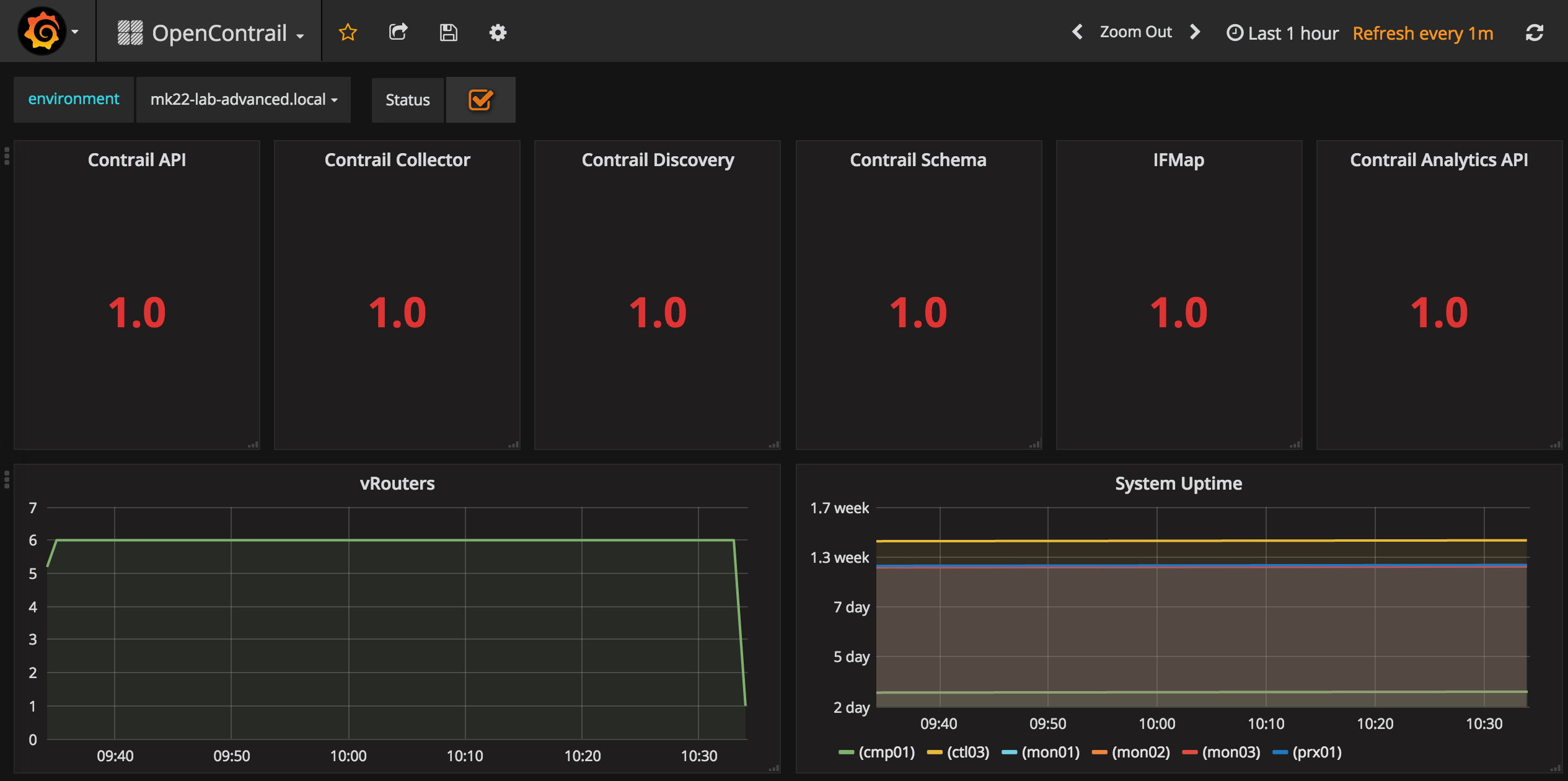

# salt -C 'I@grafana:server' state.sls grafana.server -b 1
# salt -C 'I@nagios:server' state.sls nagios -b 1
# salt -C 'I@elasticsearch:client' state.sls elasticsearch.client.service
# salt -C 'I@kibana:client' state.sls kibana.client.service
# salt -C 'I@kibana:client or I@elasticsearch:client' --async service.restart salt-minion

Wait and continue with

# salt -C 'I@elasticsearch:client' state.sls elasticsearch.client
# salt -C 'I@kibana:client' state.sls kibana.client

If the command above fails when trying to bind to the StackLight VIP (172.16.10.253), check on which interface the VIP is configured in the following file:

# vi /srv/salt/reclass/classes/cluster/mk22_lab_advanced/stacklight/server.yml

And run the following state to update the VIP.

# salt -C 'I@keepalived:cluster' state.sls keepalived -b 1

If it still fails trying to connect also run the following state

# salt -C 'I@haproxy:proxy' state.sls haproxy

Now connect to the Web UI at

  • Kibana / https://172.16.10.100:5601 or http://172.16.10.253:5601/
  • Grafana / https://172.16.10.100:8084/login or http://172.16.10.253:3000/login l: admin p: password
  • Nagios / https://172.16.10.100:8001 or http://172.16.10.253 l: nagiosadmin p:nagios

All of the above should be mostly empty, it’s normal, we aren’t yet done.

In case of issues while trying to connect to them run

# salt -C 'I@nginx:server' state.sls nginx

Compute node

To provision your compute nodes run

# salt 'cmp*' state.apply
# salt 'cmp*' state.apply

Note: I had to patch the heka formula by replacing

swap_size: {{ salt['ps.swap_memory']()['total'] }}

by

swap_size: 8192

In our workshop lab, we have a single NIC card, so Salt state cannot be used to configure the network or it will cut out the connection, so for production deployment we are saying that is is much better to have at least two network card, one for dataplane and one for management, ideally a bond of two for production traffic and a 1G interface for out of band management (PXE and Salt)

In our case you can configure compute node networking as shown below

cmp01# vi /etc/network/interfaces
auto lo
iface lo inet loopback

auto eth0
iface eth0 inet manual
pre-up ifconfig eth0 up
post-down ifconfig eth0 down

auto vhost0
iface vhost0 inet static
    pre-up /usr/lib/contrail/if-vhost0
    address 172.16.10.105
    network_name application
    netmask 255.255.255.0
    gateway 172.16.10.1
    dns-nameservers <YOUR DNS SERVER>

Now Reboot your compute node

salt "cmp*" system.reboot

Check that your IP should be bound to vhost0, which is required for Contrail . Also check contrail status

cmp01# contrail-status
<snip>

Register your vRouter run

# salt -C 'I@opencontrail:control:id:1' cmd.run "/usr/share/contrail-utils/provision_vrouter.py --host_name cmp01 --host_ip 172.16.10.105 --api_server_ip 172.16.10.254 --oper add --admin_user admin --admin_password workshop --admin_tenant_name admin"

You can process the same way to deploy your second compute node.

Check Compute node

From one of your controller, check if your compute node is present

root@ctl01:~# source /root/keystonerc
root@ctl01:~# nova hypervisor-list
+----+-------------------------------+-------+---------+
| ID | Hypervisor hostname           | State | Status  |
+----+-------------------------------+-------+---------+
| 3  | cmp01.mk22-lab-advanced.local | up    | enabled |
+----+-------------------------------+-------+---------+

Monitoring

Lets finish our deployment by deploying the remaining monitoring components.

Start by flusing Salt Mine to make sure it is clean, Mine are data about your minions available from the master for minion to consume.

# salt "*" mine.flush

Install StackLight services, and gather the Collectd and Heka metadata

# salt "*" state.sls collectd
# salt "*" state.sls heka

Gather the Grafana metadata as grains

# salt -C 'I@grafana:collector' state.sls grafana.collector

Update Salt Mine

# salt "*" state.sls salt.minion.grains
# salt "*" saltutil.refresh_modules
# salt "*" mine.update

Update Heka

# salt -C 'I@heka:aggregator:enabled:True or I@heka:remote_collector:enabled:True' state.sls heka

Update Collectd

# salt -C 'I@collectd:remote_client:enabled:True' state.sls collectd

Update Nagios

# salt -C 'I@nagios:server' state.sls nagios

Finalize the configuration of Grafana (add the dashboards…)

# salt -C 'I@grafana:client' state.sls grafana.client.service
# salt -C 'I@grafana:client' --async service.restart salt-minion; sleep 10
# salt -C 'I@grafana:client' state.sls grafana.client

Get the StackLight VIP

# vip=$(salt-call pillar.data _param:stacklight_monitor_address --out key|grep _param: |awk '{print $2}')
# vip=${vip:=172.16.10.253}

Start manually the services that are bound to the monitoring VIP

# salt -G "ipv4:$vip" service.start remote_collectd
# salt -G "ipv4:$vip" service.start remote_collector
# salt -G "ipv4:$vip" service.start aggregator

Stop Nagios on monitoring nodes (b/c package starts it by default)

# salt -C 'I@nagios:server:automatic_starting:False' service.stop nagios3

then start Nagios where the VIP is running.

# salt -G "ipv4:$vip" service.start nagios3

Stacklight Dashboards

In this model, the Dashboard are reverse proxied by our Salt Master, so you can access them below

Kibana / https://172.16.10.100:5601 or http://172.16.10.253:5601/
Grafana / https://172.16.10.100:8084/login or http://172.16.10.253:3000/login l: admin p: password
Nagios / https://172.16.10.100:8001 or http://172.16.10.253 l: nagiosadmin p:nagios

Salt Tips & Tricks

After editing your model its a good practice to check it, just run

# reclass-salt --top

Sometimes you can get lost in all the interpolation that Reclass is doing on your classes. To check Pillar or Top data of a node, you can use

# reclass-salt --pillar prx01.int.cloudvps.com

If you want to know what are the state associated with a node

# salt 'prx01*' state.show_top

To look into a specific state

# salt 'ctl01*' state.show_sls nova

Refresh Pillar and sync_all

# salt '*' saltutil.refresh_pillar && salt '*' saltutil.sync_all

Salt troubleshooting

Salt can be run in debug mode with

cfg01# salt-call state.sls linux -l info or -l debug

You can look at currently running jobs

# salt 'ctl01*' saltutil.runner jobs.list_jobs

And kill a specific one

# salt 'ctl01*' saltutil.kill_job 20161208213122517028

Pulling formulas

While developing formulas, we aren’t packaging, it’s possible to provision them from their respective git repositories. If you’ve done so, you can later update all of them with the following trick

# cd /usr/share/salt-formulas/env
# for dir in $(find . -name ".git"); do cd ${dir%/*}; git pull ; cd -; done

Merge your model with upstream

If you want to merge your fork with upstream, start by configuring Git

# git config --global user.email "youname@yourdomain"
# git config user.name "yourname"

Add the corresponding upstream repository to your fork

# cd /srv/salt/reclass
# git remote add upstream https://github.com/Mirantis/mk-lab-salt-model.git

Fetch it

# git fetch upstream

Check out your fork’s local master branch and merge it

# git checkout master
# git merge upstream/master

You now have to resolve potential conflicts as usual, by removing the problematic sections which conflicts and commit to your repo. Consult Github documentation for further details.

Conclusion

I hope this cheatsheet is usefull. I’ll update it regularly to keep it relevant with the current Mk22 advanced model.
